Mitel SG220T1A ShoreGear SG-220T1A Analog Voice Switch


Mitel Shoregear SG220T1A Analog Voice Switch

SKU: mitel-sg220t1a Categories: , Tags: , , , , GTIN: 760575141040

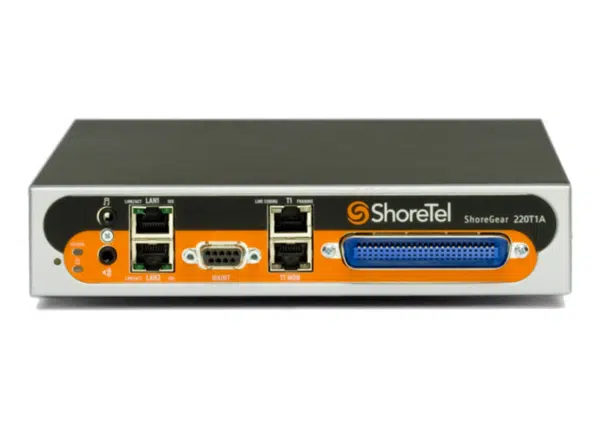

The Mitel SG220T1A Voice Switch is a 1/2 U half-width voice switch that supports up to 220 IP phones, or up to 70 IP phones, two loop start trunks, 4 analog extension ports, and a T1 simultaneously. The Mitel Voice Switch 220T1A supports Mitel IP phones, softphones, and SIP devices.

Mitel SG220T1A Features:

  • 2 RJ-45 local area network (LAN) connectors
  • 1 RJ-45 T1 port for connecting the switch to a telephone company
  • 1 RJ-45 T1 monitor port for connecting test equipment
  • 1 RJ-21X port for punchdown block, patch panel, or 12-port harmonica connector
  • 2 loop start trunk ports (FXO)
  • 4 analog extension ports (FXS)
  • 1 DB-9, RS-232C maintenance port for serial communications
  • 1 3.5 mm stereo input for connecting a music-on-hold source
  • 1 3.5 mm stereo output for connecting to a overhead paging system or night bell
  • SIP trunking and extension support

The Mitel SG220T1A includes a power cable.

Additional information

Weight6 lbs
Dimensions21 × 16 × 8 in
